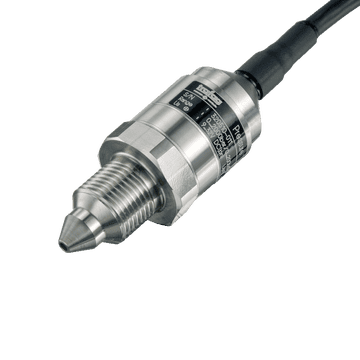

The EPN pressure transmitter offers reliable and accurate pressure measurement over a wide temperature range. Its excellent long-term stability is based on Trafag's leading thin-film-on-steel sensor technology. Thanks to its robust construction, the EPN is the ideal choice for demanding applications such as shipbuilding or railway construction.

• Measuring range: 0 .... 2.5 to 0 ... 2500 bar
• Measuring principle: Thin-film-on-steel
• Approval/Conformity: ABS, BV, CCS, DNV-GL, KRS, LRS, NKK, RINA, RMRS
• Accuracy @ 25°C typ.: ±0.5% FS typ. ±0.3% FS typ.
• Output signal: 4 ... 20 mA 0.5 ... 4.5 VDC radiometric
• Electrical connections: EN175301-803-A (DIN43650-A); MIL-C 26482; DIN72585; Cable
• Process connections: G1/4" m (seal); R1/4" m DIN3858; G1/2" m (manometer) EN 837; 1/4"NPT m; 1/2"NPT m; M14x1.5 m; M18x1.5 m
• Media temperature: -40°C ... +125°C
• Ambient temperature: -40°C ... +125°C
