CFF Din Series
Valves / Ball valves

CFF Din Series

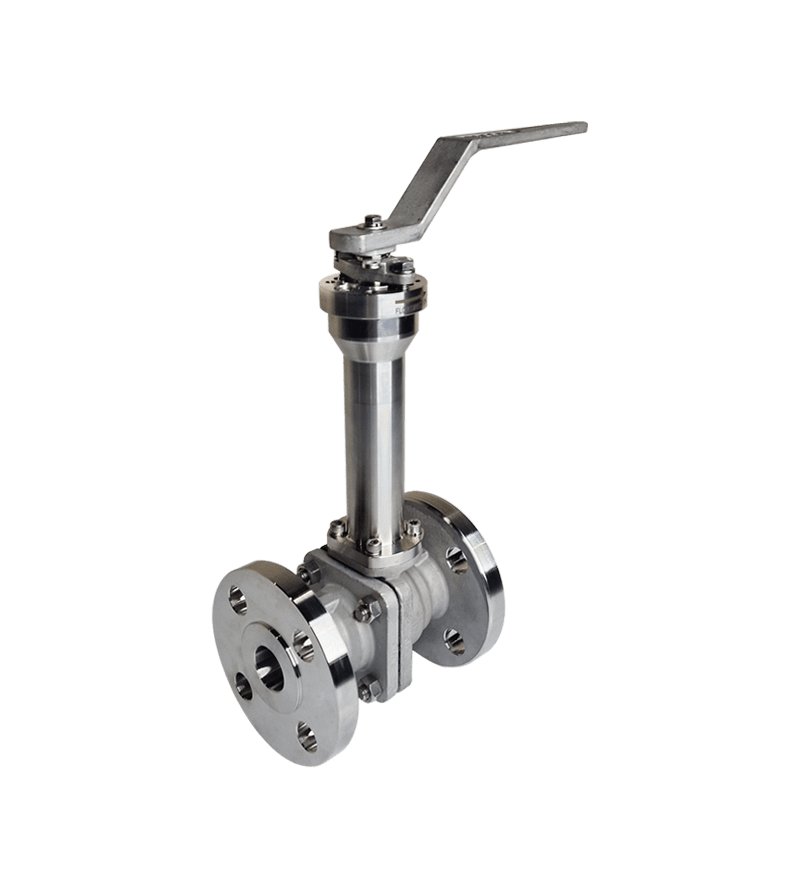

The CCF DIN Series is a cryogenic floating ball valve designed for use in extreme temperatures as low as -196ºC, making it ideal for LNG, LPG, and other applications. It features an advanced unidirectional design with an upstream relief hole to reléase overpressure safely. The valve is equipped with a rib and groove, fool-proof system to ensure proper installation and operation of the safety feature, and an expansion chamber to create a barrier between the liquefied gas and the packing, enhancing the sealing system’s performance. The CCF DIN Series is available with PN40 and PN16, short pattern F4/F5 and long pattern F1, making it the perfect solution for systems that require high reliability and safety.

  • Pressure ratings PN16, PN40
  • Temperature range -196ºC to 200ºC (-321°F to 392°F)
  • Size range DN15 – DN150
  • Body style Split-body | Full Bore
  • End connections Flanged
  • Body materials 1.4408
  • Seat materials TFM1600


-196 ºC a 200 ºC
