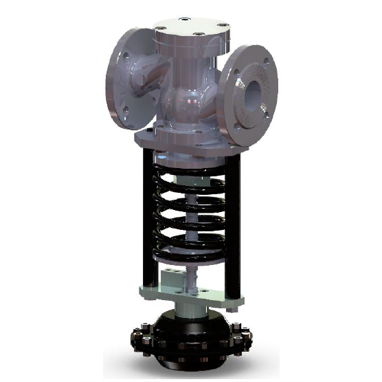

Self-acting diaphragm-actuated pressure reducing valve that controls the outlet pressure. No auxiliary power needed.

This reducer model is suitable for working with steam, compressed air and non-hazardous gases and liquids.

Fast and effective response to a change in demand.

• Single-seat globe valve with diaphragm-compensated outlet pressure. Inlet pressure piston-compensated from DN65.
• Shaft sealed by a double-layer stainless steel bellows.
• Bellows anti-torsion system.
• Pressure chamber with membranes reinforced with intermediate fabric.
• Wide range of output pressure regulation (between 0.1 and 15 barg).
• Fluids: Liquids, compressed air, neutral gases, steam.
• Maximum inlet pressure:
  • DN15-50 40 barg
  • DN65-150 25 barg
• Nominal bores: DN15 to DN150
• Body material:
  • Nodular GGG40.3
  • Carbon steel A216 WCB
  • Stainless steel A351 CF3M
  • Bronze RG10 (please enquire)
• Connections:
  • Flanges EN1092 PN16-PN40
  • Flanges ANSI 150 / 300
  • Thread BSP / NPT
• Internals: AISI 316L stainless steel
• Membrane material:
  • EPDM from -40ºC to 125ºC
  • EPDM+PTFE from 125ºC to 250ºC
• Shutter material:
  • Teflon graphite.
  • NBR, PEEK, EPDM,...
